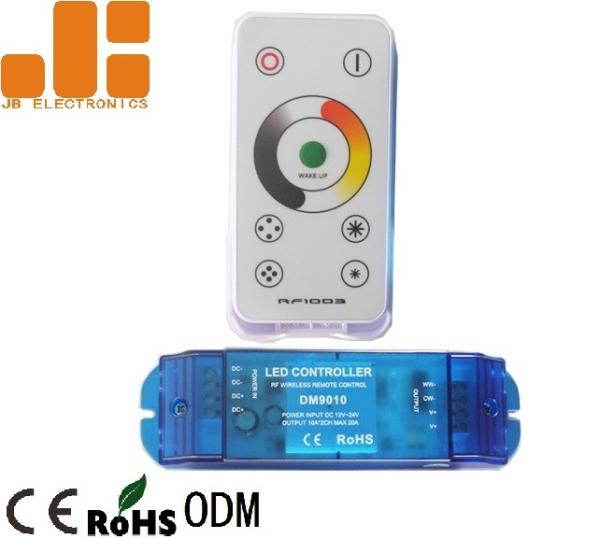

Constant Voltage RGB RF Wireless LED Controller With 17 Preseted Modes DC12V - 24V

Name: Constant Voltage RGB RF Wireless LED Controller With 17 Preseted Modes DC12V 24V
Brand: JIBANG
Price: 1 USD

Best Constant Voltage RGB RF Wireless LED Controller With 17 Preseted Modes DC12V - 24V wholesale

Brand Name : JIBANG

Model Number : CO6001

Certification : CE/ROHS/EMC/LVD

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 1000 pieces per month

Delivery Time : 3-15 days

Packaging Details : 1pcs/Carton Carton Size:L156*W124*H24mm Weight: 150g

Product Name : RF Wireless LED Controller

Input Voltage : DC12-24V

Output Signal : Constant Voltage PWM Signal

Output Channels : 3 Channels , RGB

Max Current Load : 6A/CH, Max 18A

Max Output Power : 216W(12V)/432W(24V)

Working Frequency : 433.92MHz

Frequency : 5000Hz

Working Temp. : -30~70℃

Preseted Modes : 17 Lighting Effects

Contact Now

17 Modes DC12-24V 6A*3CH RF Wireless LED Controller Touch Dimmer

Brief Instructions:

This Constant Voltage Multi-function RGB Controller is a universal RGB controller for entire color changing, which adopted high-performance microchip and the most advanced PWM (Pulse-Width Modulation) controlling technology at present. It can control all 4-pin 3-loop LED RGB full color lights. Full touch type panel with RF control, which is available only within the valid range.

Features:

1). Automatically adapt to LED works at DC12V-24V.

2). ON-OFF controller function.

3). 3 channels RGB full color control, 6A per channel, totally 18A.

4). 17 fantastic modes such as color smooth, color skipping, horserace, strobe, etc.

5). 8-levels speed and brightness adjustments.

6). Power off memory function.

Tech-parameters:

1, Remote Controller / Touch Dimmer
Input Voltage	DC3V ( CR2032 batteries)
RFID	433.92MHz
Control Mode	Press Buttons and Touch sensor
Size	L86W40H7(mm)
Weight	40g
2, Receiver / LED Driver
Input Voltage	DC12-24V
Output Si9gnal	Constant Voltage PWM Signal
Output Channels	3 channels, RGB
Output Current Load	6A/CH, Max 18A
RFID	433.92MHz
Effective Control Distance	20 Meters
Working Temperature	-20~55℃
Size	L150W45H33(mm)
Weight	80g

Specifications of LED RF Wireless Controller Series:

Model NO.	Input Voltage	Channels	Max Current Load	RF Frequence	Max Output Power	Shell Color
DM9009	DC12-24V	1CH	20A*1CH	433.92MHz	240W(12V)/480W(24V)	Blue
DM9010	DC12-24V	2CH	10A*2CH	433.92MHz	240W(12V)/480W(24V)	Blue
CO6001	DC12-24V	3CH	*6A3CH,Max16A**	433.92MHz	216W(12V)/432W(24V)	Blue
DM9121	DC12-24V	1CH	20A*1CH	2.4GHz	240W(12V)/480W(24V)	White
DM9122	DC12-24V	2CH	10A*2CH	2.4GHz	240W(12V)/480W(24V)	White
DM9123	DC12-24V	3CH	6A*3CH,Max 18A	2.4GHz	216W(12V)/432W(24V)	White
DM9124	DC12-24V	4CH	5A*4CH	2.4GHz	240W(12V)/480W(24V)	White
DM9125	DC12-24V	1CH	20A*1CH	433.92MHz	240W(12V)/480W(24V)	White
DM9126	DC12-24V	3CH	6A*3CH	433.92MHz	216W(12V)/432W(24V)	White

Function Instructions:

Constant Voltage RGB RF Wireless LED Controller With 17 Preseted Modes DC12V - 24V

1), The remote control ID learning guide: Wake Up the remote, Press (D) button, Then Power on the controller, the light on controller slow flashes 3 times, the ID is set.

2), The remote control ID clearance guide: Wake Up the remote, Press (D) button, Then Power on the controller, the light on controller slow flashes 6 times, the ID is clearance.

3), Changing Modes:When Touch remote wake up, Long Press 3seconds (B), enter Changing Modes (Mode#1 White).

4), Color Touch Ring:When Touch remote wake up, Long Press 3seconds (B), enter Changing Modes, then Long Press 3seconds (B) again, enter Color Touch Ring control. ( If Long Press 3seconds (B) again, back to Changing Modes.

5), Changing Modes control: (D) MODE+, (E) MODE-. (Refer to Tables of changing modes)

6), When status at Changing Mode#1～8 and Color Touch Ring control,
(F) BRT+ and (G) BRT-, 1-8levels brightness adjustment；
When status at Changing Mode#9-17,
(F) Speed+ and (G) Speed-, 1-8levels speed adjustment.

7), Long Press 5seconds (A), shortcuts Changing MODE#13. (7 color skipping and smooth)

8), All above operating on condition Touch remote wake up. The remote Sleep function: 30seconds without operation, lengthen battery working life. Press WAKE UP to wake up.

Tables of changing modes:

MODE #	Modes	Description
1	Static white	Static white, brightness adjustable
2	Auto Color cycle	Auto Color cycle, brightness adjustable
3	Static red	Static red, brightness adjustable
4	Static green	Static green, brightness adjustable
5	Static blue	Static blue, brightness adjustable
6	Static cyan	Static cyan, brightness adjustable
7	Static purple	Static purple, brightness adjustable
8	Static yellow	Static yellow, brightness adjustable
9	3 color skipping	Red, green and blue 3-color skipping
10	7 color skipping	Red, green, blue, yellow, purple, cyan, white 7-color skipping
11	3 color smooth	Red, green and blue 3-color gradual changes
12	7 color smooth	All 7-color gradual changes
13	7 color skipping and smooth	All 7-color skipping and gradual changes
14	R color strobe	Red color strobe changes
15	G color strobe	Green color changes
16	B color strobe	Blue color strobe changes
17	R B color strobe	Red, blue 2-color strobe changes

Product Wiring Diagram:

Constant Voltage RGB RF Wireless LED Controller With 17 Preseted Modes DC12V - 24V
